The size of the tri axle trailer in Papua New Guinea loading area is determined according to the standard container size, 40 ft flatbed trailer for sale can transport 1×40ft or 2×20ft container.
Tri axle trailer for sale is special trailer for transporting containers. The size of the tri axle trailer in Papua New Guinea loading area is determined according to the standard container size, 40 ft flatbed trailer for sale can transport 1×40ft or 2×20ft container.
A twist lock device for fixing the container is provided at positions corresponding to the four corners of the bottom of the container.
TITAN has different models of flatbed trailer for sale, such as 40ft, 20ft ,48ft, 53ft etc, with different number of axles, like 2 axle, 3 axle, 4 axle.
3 Axle 40 FT Flatbed Semi Trailer for Sale Price in Jamaica Montego Bay
3 Axle 40 FT Flatbed Semi Trailer for Sale Price in Jamaica Montego Bay

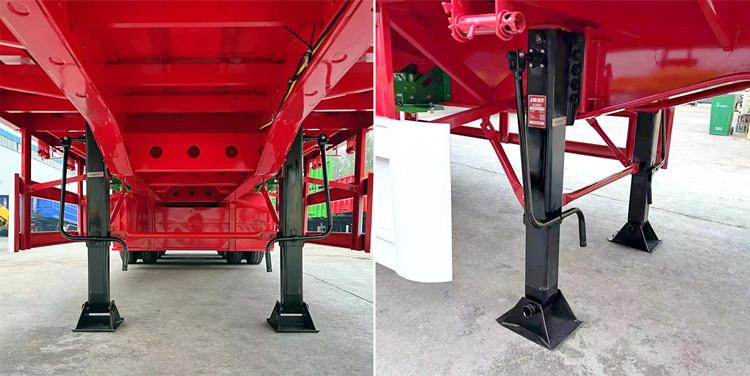

Main Beam and Landing Gear of Tri Axle Trailer for Sale in Papua New Guinea

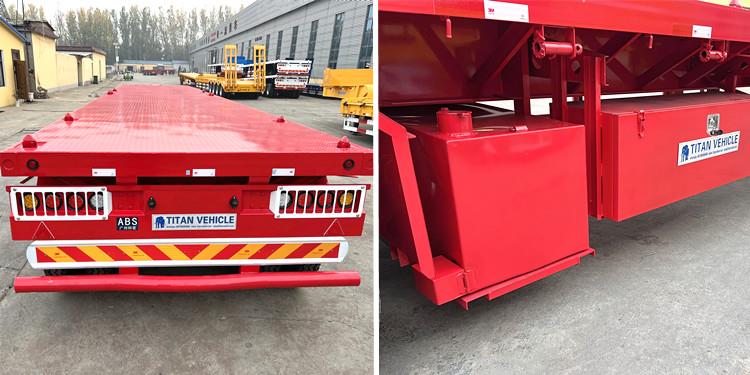

Platform and ABS Fuel Tank of 40 FT Flatbed Trailer for Sale in Papua New Guinea

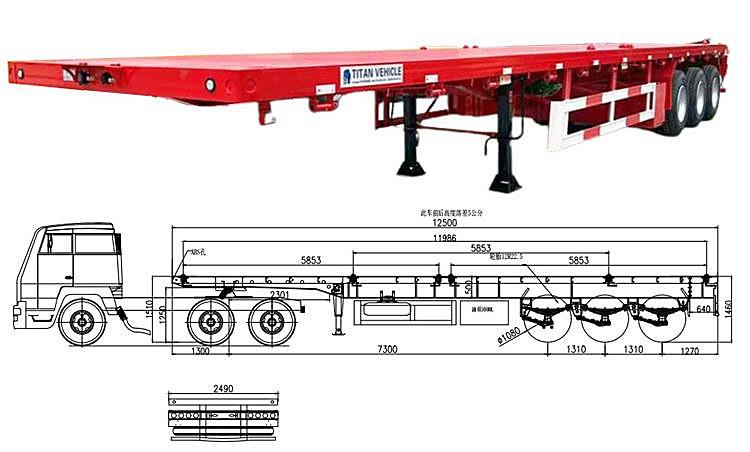

Dimension(mm): 12500x2500x1580mm
Loading capacity(ton): ≤75T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
1. The floor plate of 40 ft trailer price is the mm and it’s diamond plate, It is thicker than the 2.5mm or 2mm floor plate of other factories. The floor plate is strong and durable, and is not easy to deform.
2. The bottom plate of tri axle trailer for sale reinforced double plate at the gooseneck part of the main beam, and double plate for the middle beam, the deformation range of the flatbed semi trailer for sale during heavy load is small, which is better for use.
3. The thickness of the side beam of tri axle trailer made is 160mm, 100mm channel for through beam, and all of the through beam are supported by the Inclined support frame, and the distance of these frame no more than 500mm, which can ensure the 40 ft flatbed trailer for sale not easy to deform.
4. 40 ft trailer price have 6 beams under the floor plate, effectively ensure the flatness of the floor plate.
