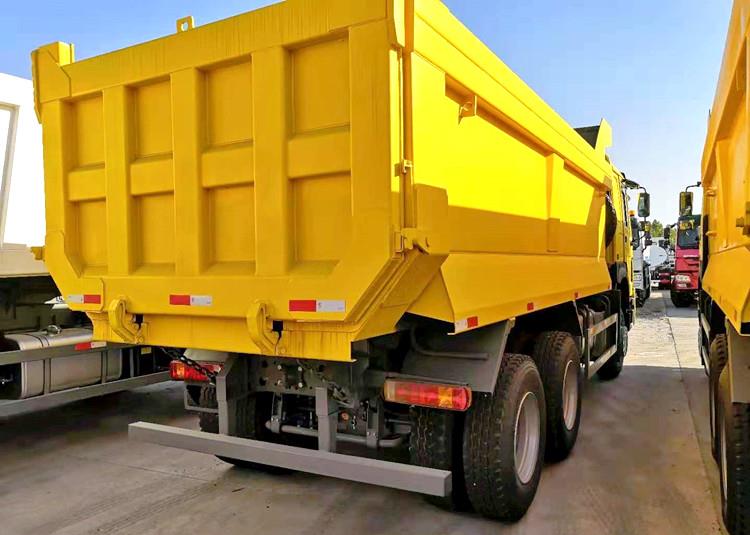

The Howo 420 dump truck cargo box adopts a U-shaped car structure design. Compared with the conventional cargo box, the U-shaped box can be unloaded more cleanly, which can reduce the possibility of sticking the box, and can lower the center of gravity of the whole vehicle, and it is not easy to overturn during driving.
The cargo hold tailgate adopts a fully-sealed anti-drip design, which can realize a full-enclosed cargo hold without overflow, effectively reduce secondary pollution, reduce dust pollution, and achieve true green transportation.

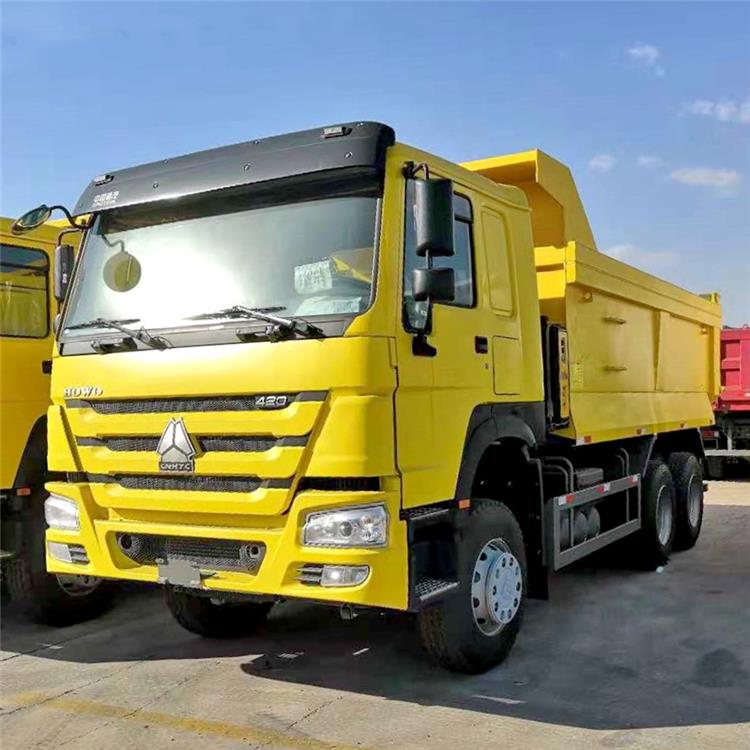

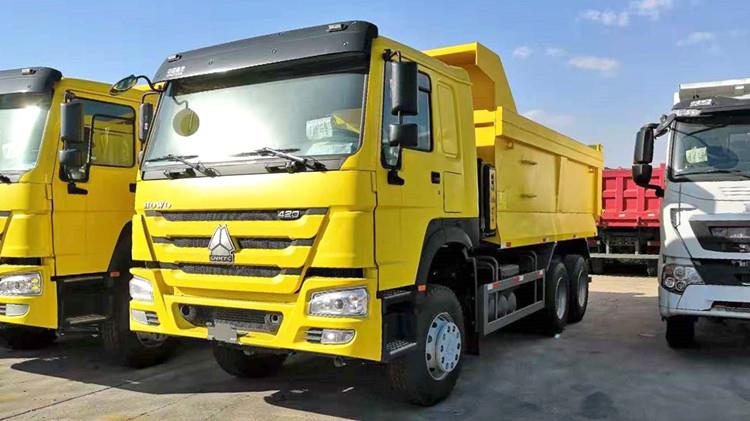

Sinotruk Howo 420 Dump Truck zz3257n3847a in Papua New Guinea
Sinotruk Howo 420 Dump Truck zz3257n3847a in Papua New Guinea
Sinotruk Howo 420 Dump Truck zz3257n3847a in Papua New Guinea
MODEL: ZZ3257N3847A
ENGINE:
Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water
cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output: 371PS (273kW) at 2000 rpm
Maximum torque: 1560Nm at 1200-1500rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73
FRONT AXLE: New HF9 series, with drum brake system
REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
STEERING: ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1
WHEELS&TYRES:
Rims: 8.5-20,10 hole-steel
Types: 12.00R20
CARGO BODY: 5600*2300*1500, bottom 8mm, side 6mm, Front lift system (Other sizes are optional)
DRIVER CAB:
Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner
DIMENSIONS(in mm):
Wheel base (mm): 3800+1350
Front wheel track (mm): 2022/2041
Rear wheel track (mm):1830/1830
Overhang(front/rear) (mm):1500/2295
Approach angle(°):19
Departure angle(°):20
Overall Dimension (mm):9745x2496x3550
WEIGHT(in kg):
Permissible loading capacity (kg):13000
Dead weight (kg):12500
Gross vehicle weight (kg):25000
Front axle loading capacity (kg):9000
Rear axle loading capacity (kg):2*16000
PERFORMANCE:
Maximum driving speed(km/h):75(reference data)
Maximum gradeability (%):36
Minimum ground clearance(mm):314
Minimum turning radius (m):15
Fuel consumption(L/100km):40(reference data)
For Howo 420 dump truck, the carrying capacity is very important. Sinotruk howo 420 dump truck adopts 8+5mm double-layer frame, and the frame height is 300mm. The front and rear axles use standard multi-leaf springs, and the front axle is 11 to 12 for the rear axle.
Howo 420 dump truck tire size is 12.00R20 with the mixed pattern. Compared with ordinary tread tires, mixed tread tires have two good drainage capabilities, while maintaining good driving performance and braking ability.
The ground clearance of the Howo zz3257n3847a dump truck is very high, which ensures that the truck can still have good passability under complex working conditions, and the bumper size is very large, which is divided into a three-section design. In case of collision damage, Can be used separately for segment replacement to save maintenance costs. After all, bumps and bumps are common on construction sites.
The Howo zz3257n3847a dump truck also offers a variety of paint colors including green, yellow, white, etc. to meet various needs. The real car adopts common green, which is in line with the theme of green and environmental protection in urban construction.
