Sinotruk for sale with advantages of power, stability and low maintenance cost, hot selling among customers in Africa.

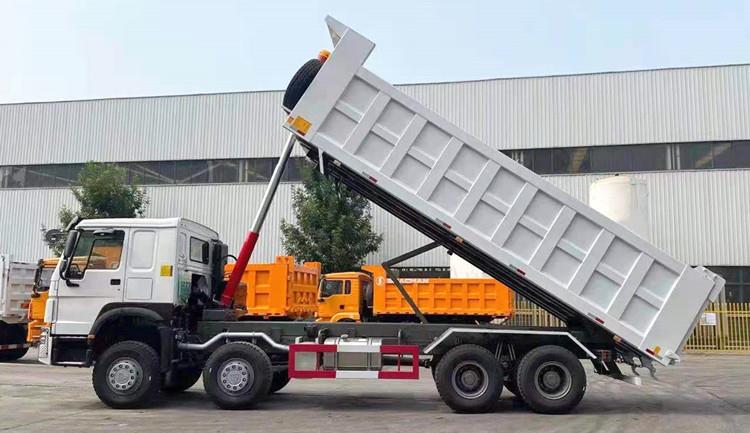

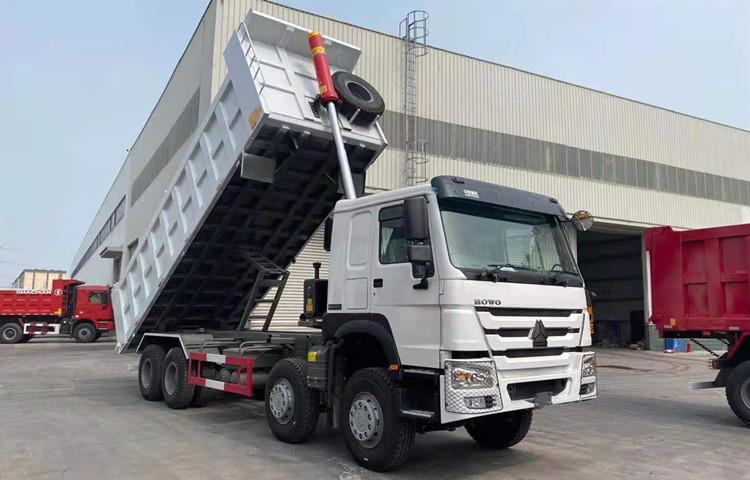

Since the sinotruk howo 371 dump truck for sale near me can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs.

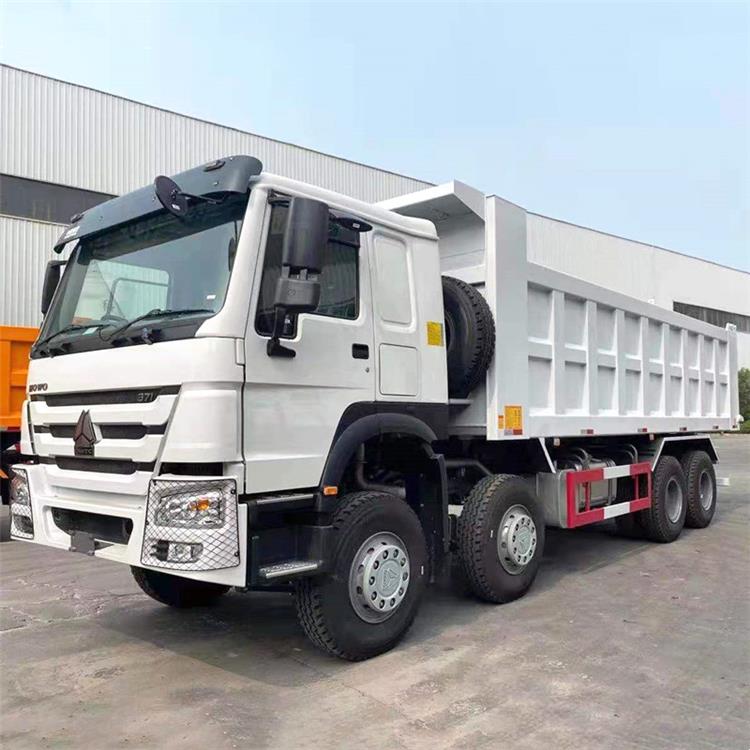

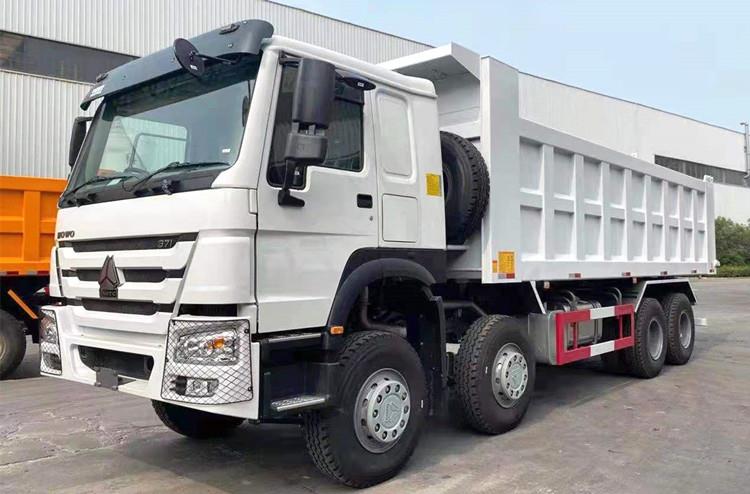

Sinotruk Howo 371 8x4 Dump Truck for Sale Near Me in Papua New Guinea
Sinotruk Howo 371 8x4 Dump Truck for Sale Near Me in Papua New Guinea
Sinotruk Howo 371 8x4 Dump Truck for Sale Near Me in Papua New Guinea
MODEL: ZZ3317N3567W
ENGINE:
Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water
cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output: 371PS (273kW) at 2000 rpm
Maximum torque: 1560Nm at 1200-1500rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73
FRONT AXLE: New HF9 series, with drum brake system
REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
STEERING: ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1
WHEELS&TYRES:
Rims: 8.5-20,10 hole-steel
Types: 12.00R20
CARGO BODY: 7300*2300*1500, bottom 8mm, side 6mm, Front lift system (Other sizes are optional)
DRIVER CAB:
Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner
DIMENSIONS(in mm):
Wheel base (mm): 1800+3500+1350
Front wheel track (mm): 2022/2041
Rear wheel track (mm):1830/1830
Overhang(front/rear) (mm):1500/2295
Approach angle(°):19
Departure angle(°):20
Overall Dimension (mm):11745x2496x3550
WEIGHT(in kg):
Permissible loading capacity (kg):16000
Dead weight (kg):15000
Gross vehicle weight (kg):31000
Front axle loading capacity (kg):2*9000
Rear axle loading capacity (kg):2*16000
PERFORMANCE:
Maximum driving speed(km/h):75(reference data)
Maximum gradeability (%):36
Minimum ground clearance(mm):314
Minimum turning radius (m):15
Fuel consumption(L/100km):40(reference data)
For the front axle, Sinotruk howo 8x4 dump truck for sale near me is equipped with the HR9 front axle, using a multi-leaf spring suspension of 9 steel plates, the front axle brake is disc brakes, and a protective cover is added to the entire braking system, which can effectively prevent splash to damage the brake disc and caliper.
The rear axle uses SINOTRUK AC16 model wheel-side reduction axle with automatic adjustment arm. The rear axle speed ratio is 4.77. The rear axle uses traditional drum brakes, which has stronger braking force. In addition, the rear axle is also equipped with a lateral stabilizer bar, It provides well guaranteed for driving stability when the vehicle is running on complex road conditions.
