Why You Should Use a Sideloader Trailer in Papua New Guinea
Sideloader does exactly what its title suggests. It loads and unloads from the side of the vehicle. A sideloader trailer is a self-loading trailer, usually skeleton type, with two hydraulic lift cranes to lift the container onto. It can be operated by the driver using the controls on the side of the trailer or the remote.
Each crane has two chains attached to the corners of the container. The crane is mounted on rails and can be moved to position the container in the correct position for isolation locks and weight distribution.
Sideloaders are particularly useful where there is limited space either in front of or behind the trailer. Containers can be transported anywhere, anytime by road, this 'self-contained' sideloader trailer is able to operate without the support of other equipment at load and unload points, enabling containers to be transported easily by road.

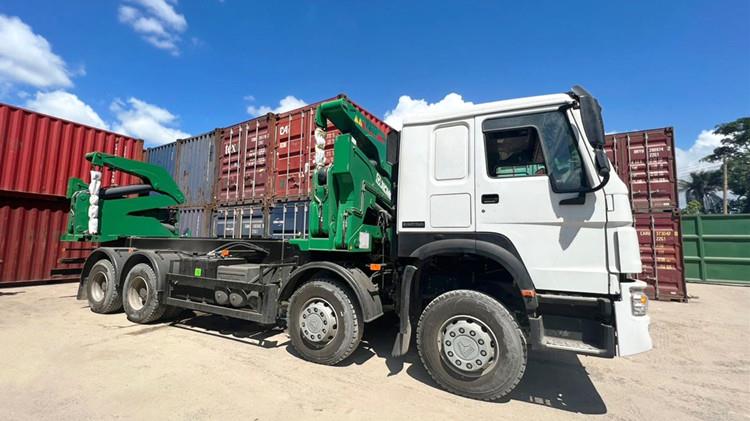

TITAN Sideloader Truck in Papua New Guinea
1. Wireless remote control. equipped with imported remote control, easy to operate.
2. Chains. They are attached from the top of the cranes to the corner corners at the base of the container (s) during lifting operations. There is a special link device that, when placed between two 20-foot containers, allows the user to lock two 20-foot (2 TEU) containers together, which allows the container-lifter to lift them up as if they were a 40-foot container. feet.
3. Chassis. It supports the weight of the container when it is loaded, it also supports the cranes.

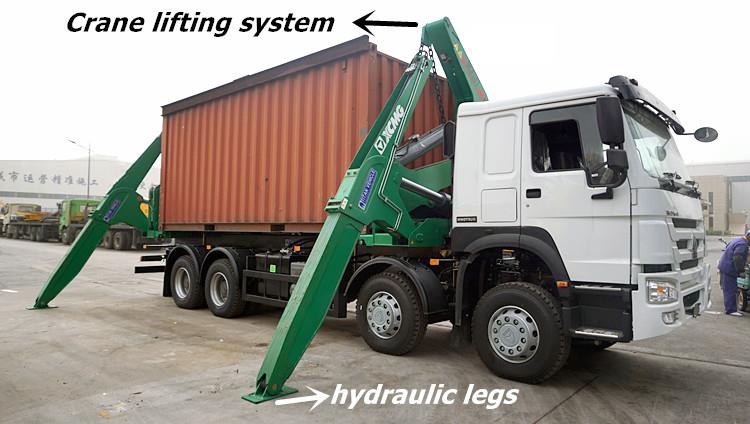

4. Crane Lift. Hydraulically powered cranes lift the container (from the ground, the loading dock, another trailer, the rail car or from the top of another container placed on the ground or other location) into and out of the chassis. These cranes are placed in the upper part of the side chassis and can usually be moved along the chassis moving with hydraulic cylinders or hydraulic motors to load different lengths of containers.
5. Boom slide system. The 20ft or 40ft container can be loaded and unloaded through the sliding of the front and rear cranes, which has a wide range of applications and good versatility, greatly expanding the use of the equipment.
6. Trailer Stabilizer Legs. These are equipped with hydraulic legs that are necessary to allow the lifting of loads of up to 44 tons without tilting the sideloader for sale in papua new guinea. These can be adjusted to help the operation in a level less terrain and facilitate greater safety margins and load limits when stacking containers.

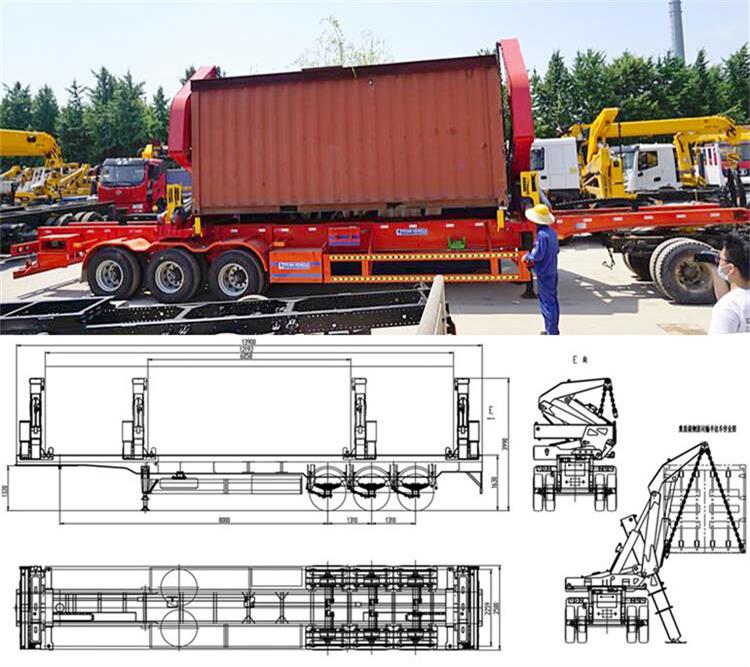

Details of Sideloader Truck in Papua New Guinea
1. Sliding container side self-loading and unloading transport trailer
Through the sliding movement of the front and rear cranes, the loading and unloading of 20ft or 40ft containers or similar containers can be realized. The application range is wide and the versatility is good, which greatly expands the use of the equipment. And TITAN sideloader for sale has the higher lifting capacity, staring at 37ton in the basic design and available with a full 40 ton of capacity.
2. Lifting chain twist lock device + automatic storage for container loading and unloading
The lifting chain twist-lock mechanism for side lifter and unloading, the twist lock is automatically rotated and locked in the container corner during the packing operation, will not fall off, and ensure safety during operation; during transportation, the twist-lock can still be automatically locked through the limit device.
The repetitiveness of the operator’s transport chain collection and unloading and loading chain is lifted, and the safety during driving is also greatly improved; after the operation is completed, the hoisting chain in the process of hoisting arm recovery is realized by optimizing the movement trajectory and position of the hoisting point The automatic storage greatly improves the comfort of operation and the safety of the 37 ton sideloader in papua new guinea.
3. Control system optimization technology
Sideloader trailer is reasonably matched with the combination of a remote wireless control remote control and a load-sensitive electro-hydraulic proportional multi-way valve with pressure compensation in front of the valve. The remote control operation is safe, comfortable and convenient. The remote control panel and handle are human-oriented and conform to the movement trend of the machine; proportional control realizes step-less speed regulation to ensure the smooth operation of the whole machine and accurate control of fine movements.

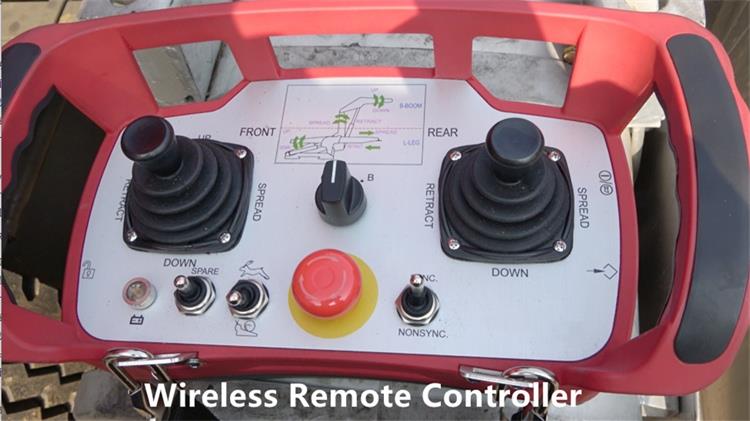

Remote Control of TITAN Sideloader Trailer
4. Double pumps and double branches
Sideloader in papua new guinea is powered by an adjustable speed engine. The hydraulic oil output by the double pump passes through the confluence valve group and then is delivered to the multi-way valve group of the front and rear side cranes connected in series to drive the respective actuators, with a larger range of linkage The adaptability greatly guarantees the stability and reliability of the hoisting process.
5. Electro-hydraulic load adaptation
High and low-pressure double pumps are used, and the two cranes at the front and the rear are supplied with oil after combined flow through the diverter valve, which can realize the large flow of dual pumps at the same time under low-pressure conditions and the low-pressure pump under high-pressure conditions.
The small flow rate for high-pressure unloading ensures the efficiency and quality of lifting operations. This technology can not only ensure the stability of the speed switching of the crane under high and low-pressure conditions but also make full use of the output power of the engine, which is more economical.
6. Reasonable matching of safety systems
During the operation of the whole machine, there is an intelligent anti-tipping protection system on one side of the outrigger to monitor the stability of the whole machine in real-time. If there is a risk of tilting, it can automatically alarm and effectively lock; the other side of the outrigger is protected by a baffle to prevent The container enters the dangerous area.
The application of high-strength steel plates has passed advanced software analysis and rigorous testing to ensure safety and reliability; at the same time, high-quality hydraulic seals, high-level electrical protection, safe and reliable locking mechanisms, and practical and safe emergency stop functions have also increased Security guarantee.
Sideloader trailer can load 20ft and 40ft containers
A sideloader for sale can be used to transport much other cargo other than just the containers. It can handle industrial equipment, specialized containers such as portable buildings, fuel containers and so on.
It gives you a chance to make many container movements per day. You can safely transfer containers to the ground in a matter of minutes. This increases efficiency and productivity.
It can safely handle fragile, valuable and hazardous cargo. Differentiated cargo can easily be loaded and offloaded without messing up with any of them. The sideloader trailer action allows you to safely place your containers on the exact location as required to facilitate ease of access during loading and offloading as needed.
Double stacking containers. Now that they can work well in restricted space areas, the sideloader in papua new guinea can safely and quickly stack fully loaded 20ft and 40ft containers on top of each other.

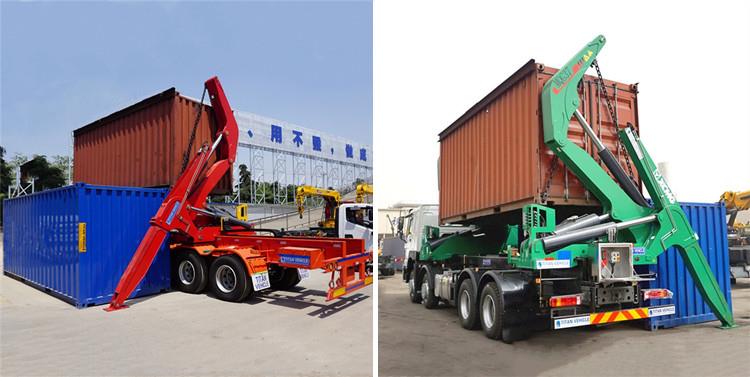

Sideloader can realize double stacking of containers
Operation costs- With the sideloader for sale, costs of operation are greatly reduced. This is so because the container and not the trailer is normally left with the customer. On many occasions, the customer stays behind with the trailer, which is an unproductive way of using the equipment. For the container side lifter, it is produced throughout the day loading, transporting and offloading containers from one job to the other.
Not many operators and equipment are required in the lifting operations. The sideloader trailer driver can offload the container in a matter of minutes on his own and can comfortably move 20ft and 40ft containers using the same equipment piece. No extra personnel or equipment is needed. This makes your operations cost-effective.
The sideloader in papua new guinea is a tough construction that makes it reliable equipment with minimal maintenance requirements. It is capable of handling container movements on any type of terrain and that includes on a low-cost dry terminal.
You can transport your containers anywhere and anytime via road. The ability to operate independently without requiring support of other equipment during loading and offloading operations makes it possible to transport containers by road.
