Table of contents
Chapter 1. What is a side loader?
1.1 Side loader truck VS trailer
1.2 What are the dimensions of a side loader trailer?
Chapter 2. What is the use of side loader?
Chapter 3. What are the advantages of a side loader?
A side loader is a self-loading vehicle, usually skeleton type, with two hydraulic lift cranes to lift the container onto. It can be operated by the driver using the controls on the side of the trailer or the remote.
Each crane has two chains attached to the corners of the container. The crane is mounted on rails and can be moved to position the container in the correct position for isolation locks and weight distribution.
Side loader trailer handle containers in areas where space is limited. The side loader for sale quickly and safely stacks 20ft and 40ft fully loaded, hazardous and fragile containers on top of each other. Side loader can be productive all day, loading, transporting and unloading containers then moving onto the next job. There is just one piece of equipment to manage and maintain, reducing your operating costs. Side loader trailer can transport more than just containers. They can handle up to 45 tonnes of cargo, industrial equipment, special trailers and specialized containers e.g. fuel, portable buildings, etc.
The loading and unloading of containers can take place on the ground, reducing the risk of injury. The waiting time is eliminated so that other lift-type machines are available, as well as the need for expensive land preparation. This not only saves money for the transport operator; It also saves time for importers, manufacturers, and distributors. When transporting a side loader for sale by road, operators can easily load containers into trailers without the help of cranes.
40ft Side Loader Trailer for Sale in Papua New Guinea

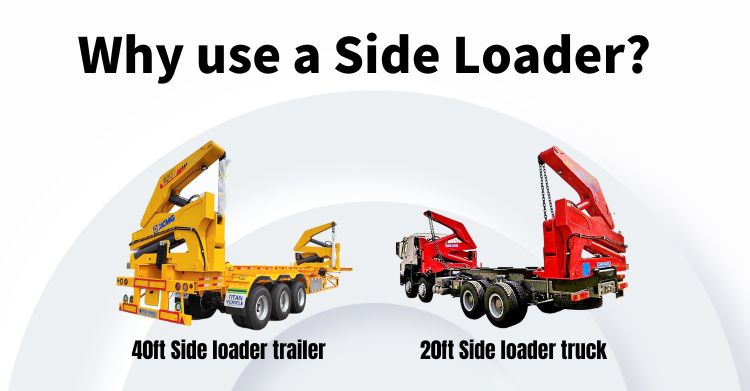

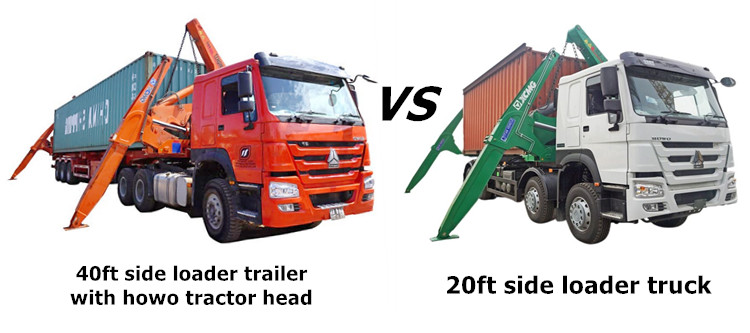

A side loader truck is a type of truck that loads cargo from the side instead of the back. It is commonly used for transporting shipping containers, as well as other types of large and heavy items. The side loader truck has a hydraulic system that allows it to lift the container or item and place it onto the ground.
On the other hand, a side loader trailer is a type of trailer that is attached to a truck and is designed to load and unload cargo from the side. Unlike a side loader truck, which has its own engine, a side loader trailer relies on the power of the truck to move it.
The main difference between the two is that a side loader truck is a standalone vehicle with its own engine, while a side loader trailer is an attachment that requires a truck to provide the power to move it. And the side loader truck is only 20ft in size and can only be used to load and transport 20 ft containers. The side loader trailer has 20 ft and 40 ft sizes, which can load and transport 20 ft or 40 ft containers.

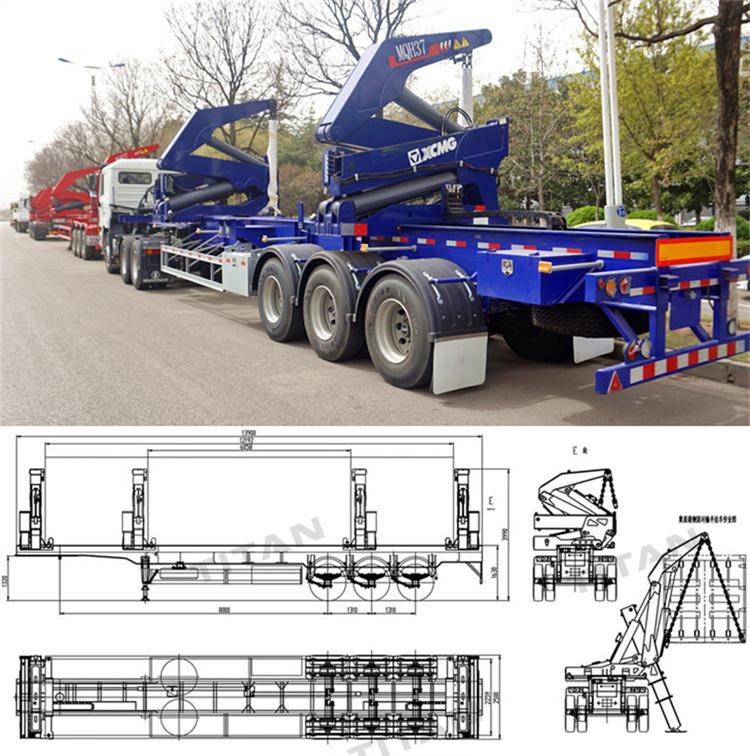

1.2 What are the dimensions of a side loader trailer?
The dimensions of a side loader trailer for sale in papua new guinea can vary depending on the specific model. However, in general, these trailers are typically between 12 and 14 meters in length, around 2.5m wide, and have a height of approximately 4m. Of course, there may be variations in these measurements depending on the specific trailer design and construction. It's always a good idea to check with the manufacturer for the exact dimensions of a particular side loader trailer.
20ft side loader truck dimensions: 12000*2500*4000mm
40ft side loader trailer dimensions: 14100*2500*4100mm
Side loader trailer for sale in papua new guinea is 37 tons lifting capacity, tested up to 45 tons
According to the type of transportation container, it is divided into 20ft and 40ft side loader trailer.
According to different transport chassis, it can be divided into side loader truck and side loader trailer.
It is mainly used to load containers, and can also be used to load container tank, equipments, wood, etc.
1. Grounding and lifting of containers
Grounding and lifting represent 90% of a sidelifter’s tasks. Once on the ground, the sidel loader trailer for sale in papua new guinea goes to another job, while the container can be stuffed or unstuffed more easily, without the need of specific infrastructure such as platforms or loading ramps. Forklifts can therefore enter the container. Side loader range of equipments allows to handle containers even on rough ground.

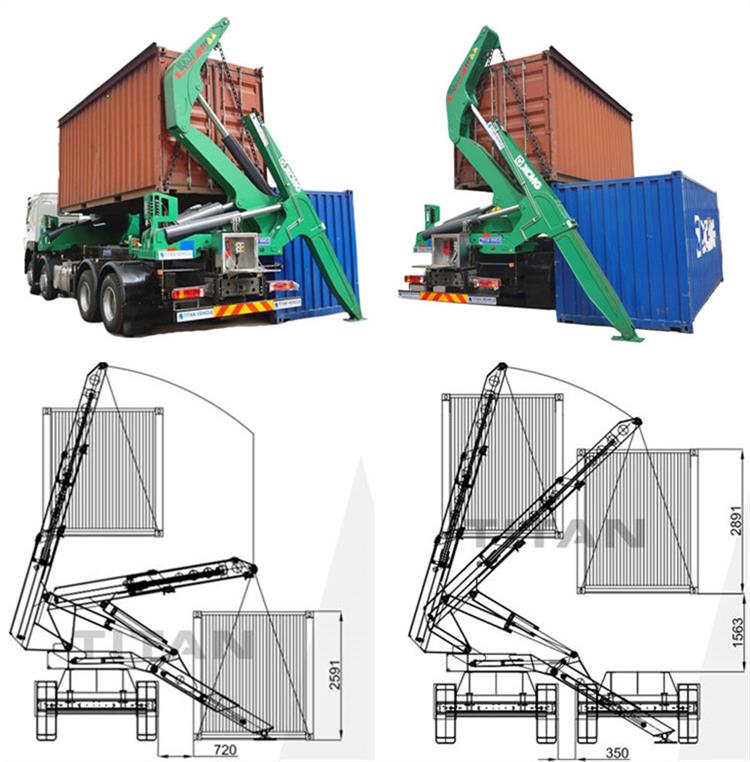

2. Double stacking of containers
Lack of space is a recurrent feature of today’s logistics world. Double stacking of containers can be a very useful and economic solution.
TITAN side loader truck and trailer can double stack two high cube containers on the ground without chain shorteners. It avoids to invest in a specific equipment.
3. Transfer from/to other trailers
When several containers must be delivered in the same yard, container side loader can pick up the containers on the companion trailers to ground them. Waiting time for trucks and trailers is drastically reduced, thus improving the efficiency and profitability of each trip.
1. Reduce demand for additional equipment and workers
Before using side loader trailer, loading and unloading containers requires more equipment, machinery and human resources. Now the side loader trailer for sale in papua new guinea have integrated cranes and outriggers, allowing the driver to load containers in minutes. Simple and easy to operate.
Traditional vehicles still require additional equipment to ensure and ensure the safe delivery of goods. Compared with side loader trailer, not only can reduce costs, but also eliminate other unloading equipment, including Self loader for sale and warehouse trolleys, pallet trucks and lifts. Instead, your delivery can reach your destination quickly.
2. Functions in a limited space
Compared to forklifts, the TITAN side loader trailer for sale in papua new guinea offers a narrower, more practical design. Its increased versatility and ability to work in confined spaces mean that you can drive the side loader directly next to the container for easy loading and unloading.
TITAN side loader trailer work in multiple directions, allowing you to move containers up to 40 or 20 ft quickly and safely. You can also choose to stack them together to make the most of your space. Most importantly, they can be easily loaded and unloaded in narrow spaces, so they can achieve maximum value in busy warehouses and intercity locations.

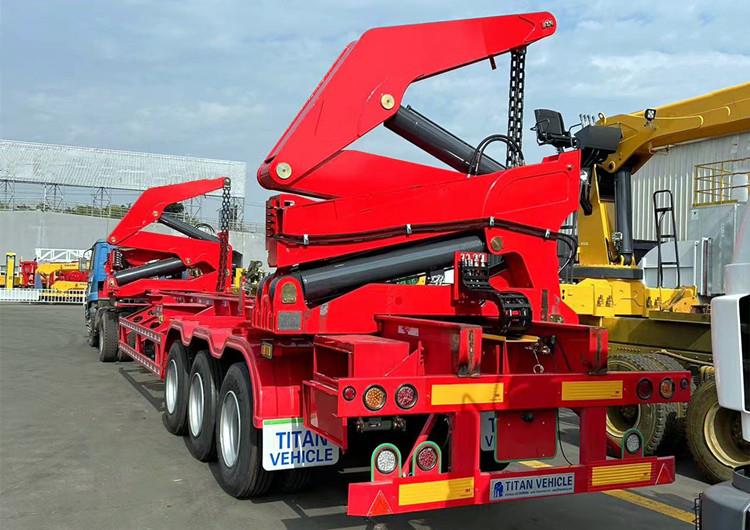

40ft Side Loader Trailer for Sale in Papua New Guinea
3. Fast turnaround
For companies that rely heavily on container handling, side loader truck trailers are the ideal choice. As mentioned above, the side loader specifications makes loading and unloading quick and easy. And there are multiple application methods that increase the number of deliveries and reduce downtime.
4. Proven reliability
Durable side loader truck are built for their industry. The sturdy, reliable, and minimal maintenance side loader can run on any terrain, making it a smart choice for container shipping needs. Depending on your usage, buying a side loader trailer from an experienced shipping company may be more economical and easier than buying the product, and you don't have to worry about maintenance.
5. Easily handle sensitive, fragile and dangerous goods
Using a side loader trailer will not damage your fragile, fragile or dangerous goods. All goods are safely packed and intact.
If you are located in Africa, TITAN side loader for sale is at the forefront of professional side lifter truck for sale manufacturers, suitable for all roads in Africa, and happy to help with all domestic and international transportation.
Customer Feedback of Side Loader Trailer for Sale
